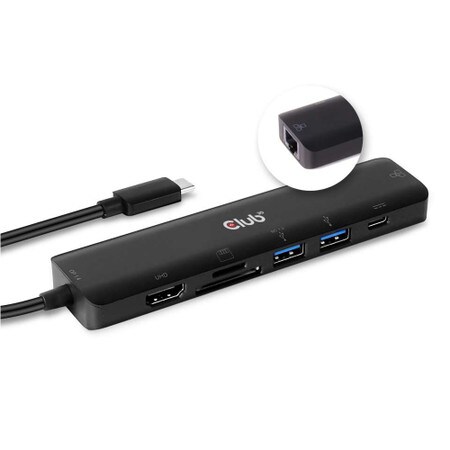

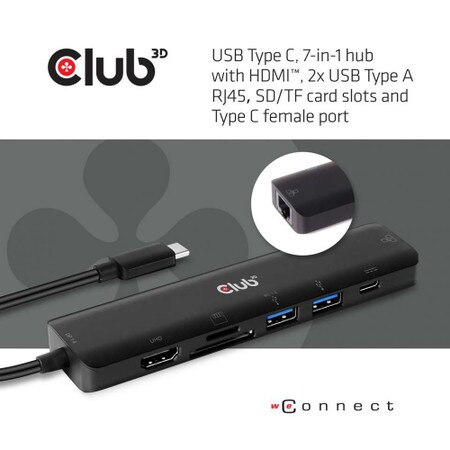

USB-C 7 in 1 Hub to HDMI 4K60HZ+SDTF Card Slot + 2X USB + USB-C PD + RJ45 Adapter Gray

CSV-1592 - The Club 3D Hub is a USB Type C 7-in-1 Hub to HDMI™ 4K60Hz /SD-TF Card slot / 2x USB Type A / USB Type C PD / RJ45, providing an ideal solution for extending the port of USB Type C or Thunderbolt™ 3 host (PC/Laptop/tablet/Mobile phone, etc.),especially for the host with a single USB Type C port. This hub adopts the latest DP 1.4 Alt mode technology available today, enabling to output HDMI™ video with max 4k/60Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. 2x USB Type A ports allow you to connect 2 USB devices simultaneously. SD/Micro SD allow to insert 2 card slots simultaneously for data transmission or for reading/writing information on the host. RJ45 ports allows the host to get access to Gigabit Ethernet. Besides, the USB Type C female supports PD 3.0 with max 100W PD Charging. It can work on all USB Type C and Thunderbolt™3 host that supports DP Alt mode(including DP1.2 and DP1.4 Alt mode).When working on Thunderbolt™3 host, this product transmits DP signal.
Full specs here.

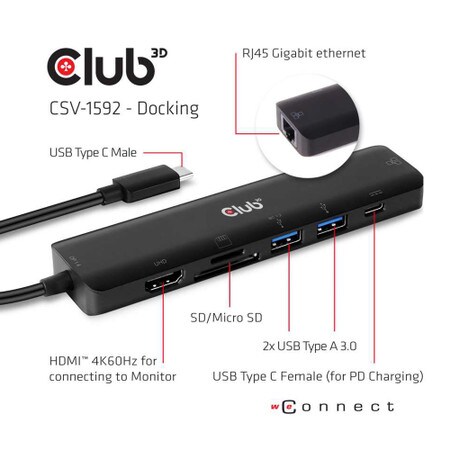

Key Selling Points

• Upstream: USB Type C Male (Connection to host)
• Support DP 1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps/ (8.1Gbps per lane),downward compatible with DP1.2 Alt mode
• Note: To get max bandwidth, the host should support DP 1.4 Alt mode with DSC format.
• Downstream: Support HDMI™ max 4K/60Hz 4:4:4, 8bit with 18Gbps Bandwidth
• Support 6/8/10/12 bit color depth output
• Support output pixel format RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2
• Support HDCP 2.2&HDCP1.4
• Support HDR
• Note: When connecting a DP 1.4 Alt mode supported host, the max resolution of HDMI is 4k/60Hz; When connecting a DP 1.2 Alt mode supported host, the max resolution of HDMI™ is 4k/30Hz due to bandwidth limitation
• 2x USB Type A 3.0
• 1- USB Type A port supports BC 1.2 with max. 7.5W(5V@1.5A) downstream charging,
• 2- USB Type A share max. 8W (5V/1.6A) downstream charging.
• Max 5Gbps bandwidth per USB Type A port
• SD/Micro SD
• Support Secure Digital v3.0 UHS-I (Ultra High Speed)SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s)
• RJ45 (Gigabit Ethernet) Support 10Mbps/100Mbps/1000Mbps
• USB Type C Female (for PD Charging)
• Support PD Charging 100W (20V/5A)
• Support Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging in and out PD Adapter
• 8W is dedicated to the functioning of this product, the rest power (max 92W) will be passed to charge for the host
